Roofing Glazed Tile Roll Forming Machine

Flow cart of roofing Glazed Tile Roll Forming Machine:
Decoiler-Fee ding Guide-Roll Forming Machine-Hydrauli c Pressing%Cutter- Runout Table

Technical Parameters of roofiing glazed tile roll forming machine:
Maual Uncoiler:
Coil inner diameter: 450mm-510mm
Max weight of loading: 5 Tons
Thickness of Material: 0.3_0.6mm
Width of Material: 1250mm.

roofiing glazed tile roll forming machine:
Roller Stations: 16 stations
Forming Speed: 6_8m/m.
Material of shaft: 45# steel.
Diameter of shaft: 70mm
Material of roller: 45#steel Polished and coated with chrome 0.05mm
Bearing: 6212
Transmission : By 1.2" chain.
Main Power: 7.5 KW
Main Construction: 36# "H" beam steel.
Installation dimension about(L*W*H): 8.2m*1.5m*1.5m
Total weight: Appro of glazed tile roll forming machine. 7Tons
Voltage: 380V/50/60Hz/3 phase

Hydraulic Pressing & Cutting and Electrical Parts for roofiing glazed tile roll forming machine:
Hydraulic station power: 3kw
Material of Cutting Blade: Cr12 steel through heat treatment with HRC58-60
Material of Pressing Mould: Press Module Material: 40GCr
Control: PLC Control Box, touch screen, frenquency converter.

The main parts of roofiing glazed tile roll forming machine:
Manual uncoiler 1 unit
Roll Forming Machine 1 set
Hydraulic Pressing 1 unit
Hydraulic Cutting system 1 unit
PLC Control System 1 PCS
Runout Table 2 PCS

The main structure of the roofiing glazed tile roll forming machine: The machine is constituted of passive-type hydraulic decoiler, guiding and feeding parts, forming parts, ladder profiling, cutting parts, hydraulic system, PLC computer controlling system, exit rack.

glazed tile forming machine

glazed tile roll forming machine

roofing glazed tile roll forming machine

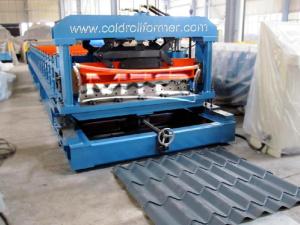

Roofing Glazed Tile Roll Forming Machine Images
